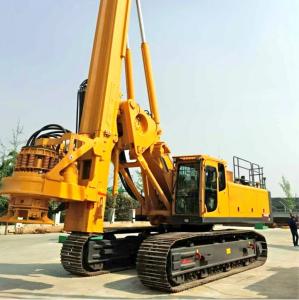

44m Xr120d Hydraulic Conventional Piling Rig Luffing Support

Model Number : xr120d

Place of Origin : China

MOQ : 1

Price : Negitionable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10

Delivery Time : 30 days after receiving down payment

Packaging Details : No packaging

Power : 112kw

Model : xr120d

Maximum Output Torque of Power Head : 120kn.M

Specification : 12580*3400*3360mm

HS Code : 8430691100

Drilling Pipe : 377mm

Contact Now

44m Xr120d Hydraulic Rotary Drilling Rig
 The XR120D rotary drilling rig has a backward tilting large triangle structure and fixed luffing support, which is convenient for transportation and at the same time improves the rigidity of the working mechanism and enhances the working stability of the whole machine, which is suitable for the working conditions of small tonnage drilling rigs; imported Kawasaki hydraulic parts, the power system is reasonably matched , high construction efficiency; imported Cummins engine, optional two throttle control methods, so that your fuel consumption can be minimized; the working range of the auxiliary winch is enlarged, which can meet the hoisting of light and small objects and save the cost of auxiliary equipment; the main roll Yang adopts a large-displacement motor design, which is more sensitive in response and more reliable in work, and it is no longer difficult to unload soil in small-diameter pile holes.
Project
Unit
Parameter
Uncased

(mm)

φ1300
Max.Drilling Depth
(m)
44
Working condition L × W × H

(mm)

7175×3400×16800
Transportation condition L × W × H
(mm)
12580×3400×3360
Overall Drilling Weight
(t)
40
Model

-

/
Rated Power
(kW)
112/1950
Working pressure

(MPa)

32
Max. output torque

(kN.m)

120
Rotary speed
(r/min)
6~28
Max.pull-down piston push

(kN)

120
Max.pull-down piston pull
(kN)
120
Max.pull-down piston stroke
(mm)
3500
Max.pulling force

(kN)

100
Max. single-rope speed
(m/min)
70
Diameter of the steel wire rope
(mm)
24
Max. Pulling force

(kN)

45
Max. single-rope speed
(m/min)
70
Diameter of the steel wire rope
(mm)
16
Left/right inclination of mast

(°)

42432
Front inclination of mast
(°)
5
Rotary table slewing angle
(°)
360
Max. traveling speed

(km/h)

3.2
Max.grade ability
(%)
40
Track shoe width

(mm)

700
Distance between tracks
(mm)
3400
The length of crawler
(mm)
3650
Average ground pressure
(kPa)
73.6
