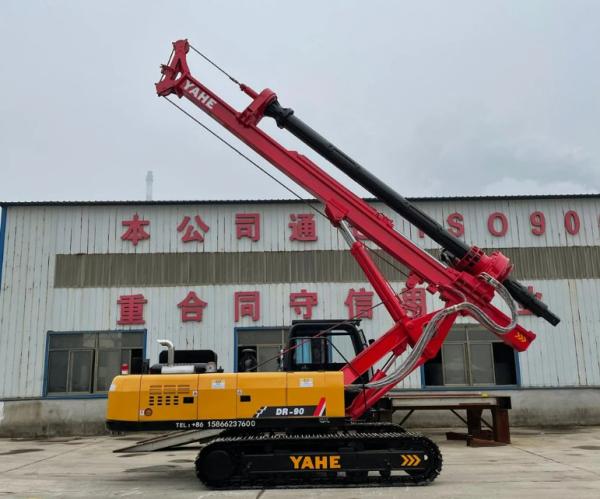

Max Drilling Depth 30m Dr-90 Mini Crawler Hydraulic Piling Machine

Product Categories

Zhengzhong Technology Industrial Co. , Ltd.，

Contact Now

Brand Name : DR

Model Number : Dr-90

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : Negitionable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10

Delivery Time : 30 days after receiving down payment

Packaging Details : No packaging

Brand : Dr-90

Model : Dr-90

Moving Type : Crawler

Engine : Cummins

Specification : 9800mm*2200mm*2950mm

Power : 110KW

Contact Now

Parameter

	DR-90
Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1600
drilling depth (m)	5-15m
Diamension (mm)	9600X2300X3200mm
Total weight (t)	17T
Power head max output torque (KN.m)	30KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	120KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	2 km/h
Diesel engine power (KW)	110KW ,cummins ,water cooling ,turbo charger

Max Drilling Depth 30m Dr-90 Mini Crawler Hydraulic Piling Machine
